Automated Moisture Analyzer (ROS 1)

9 Samples Automated Moisture Analyser

9 Samples Automated Moisture Analyser

Loading...

Description

Nine samples. 40 minutes. Zero busywork.

Other loss on drying methods require hours of shuffling samples in and out of machines. The ROS 1 automates the monotony, freeing you to do more profitable work.

Analyze as many as nine samples at once.

Once you fill the sample cups and press start, the ROS 1 takes care of the rest.

It collects extensive data, enters it into a spreadsheet, creates a live drydown curve, and safely ends the test – all automatically, with no supervision necessary.

World-class analysis.

ROS 1 heats samples, but it’s far more than a drying oven or moisture balance. Its unique heat source gently and precisely raises the sample’s temperature, vaporizing moisture without scorching or burning.

As samples dry, they’re cycled across a highly accurate scale that records changes as small as 1/1000th of a gram. It’s MC analysis at its best: Precise, repeatable, reliable.

Additional information

Brands

SPECIFICATION

SPECIFICATIONS
MEASUREMENT SPECIFICATIONS
Moisture Range: Range:0.1 – 100.0 %

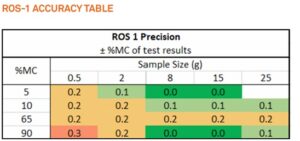

Accuracy:
Repeatability:



(4g sample):0.1 %

(10g sample):0.0 %

Method: Loss-on-drying using any standard method
Scale: Readability:0.00 g

Minimum:0.00 g

Maximum:50.00 g

Calibration: Performed in Bridge software

Samples: Number:1 – 9

Size Range:0.50 – 20.00 g

COMMUNICATION SPECIFICATIONS
Data Communications Serial over USB
PHYSICAL SPECIFICATIONS
Dimensions: Length:38.1 cm (15.0 in)

Width:30.5 cm (12.0 in)

Height:20.3 cm (8.0 in)

Drying Unit Heat Source: Resistive coils provide conductive heat

Temperature Range:50.00 – 150.00 °C

Temperature Adjustment Increments:1.00 °C

Case Material Powder-coated steel
Power 110–220 VAC;  50/60 Hz
Sample Cup Capacity 33 mL (1.124 fl oz)
Operating Temperature 4.00 °C – 50.00 °C
Operating Environment 0.0 – 90.0 % noncondensing
Weight 12.5 kg  (27.56 lbs)
Compliance Manufactured under ISO 9001:2015

EM ISO/IEC 17050:2010 (CE Mark)
